#Admin Console

For configuration, management and monitoring purposes Webswing provides a convenient web interface.

#Server Statistics

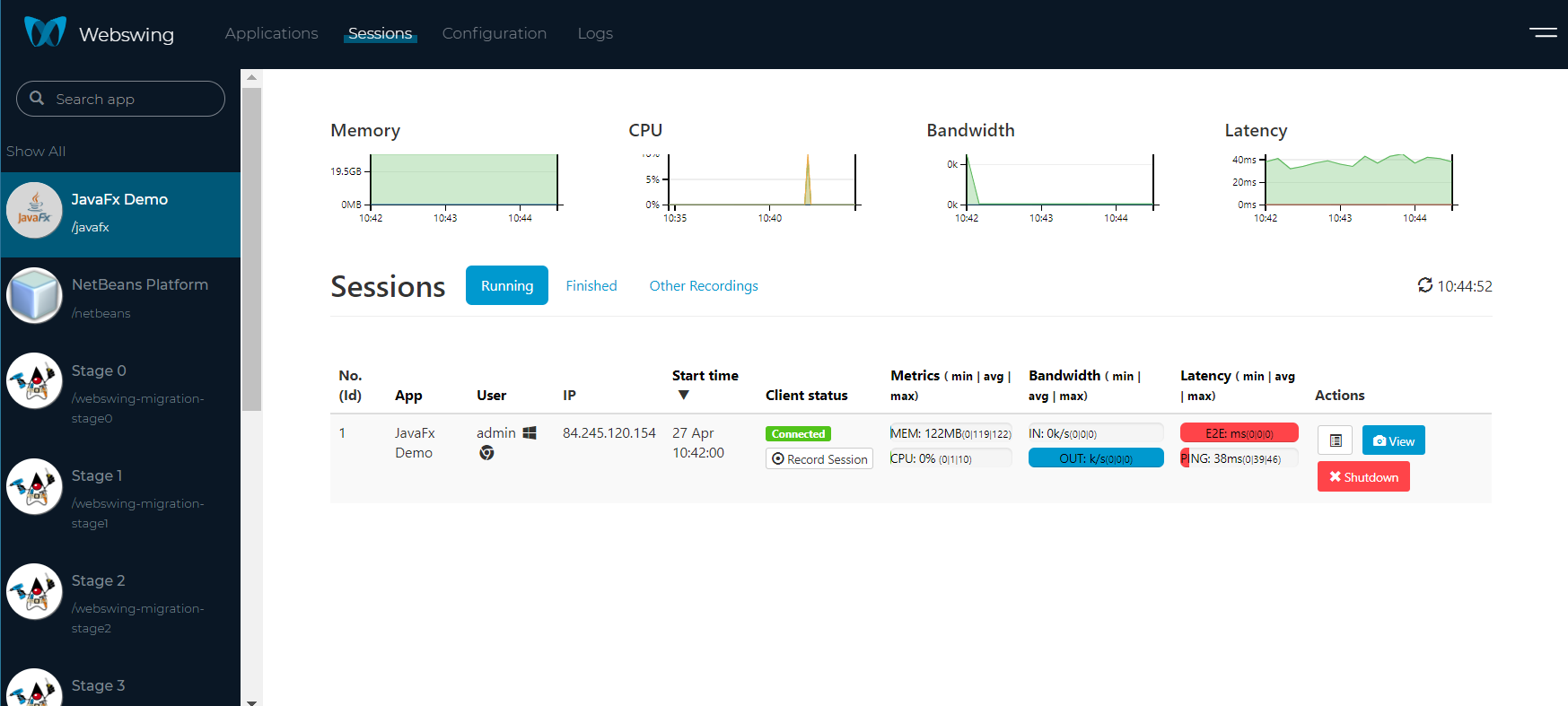

In the top navigation bar you can access Sessions.
Here you can see details about each session, shut down the session, or record the session. You can filter the sessions by selecting the application name on the left. In the top is aggregated data about CPU, RAM and Network consumption.

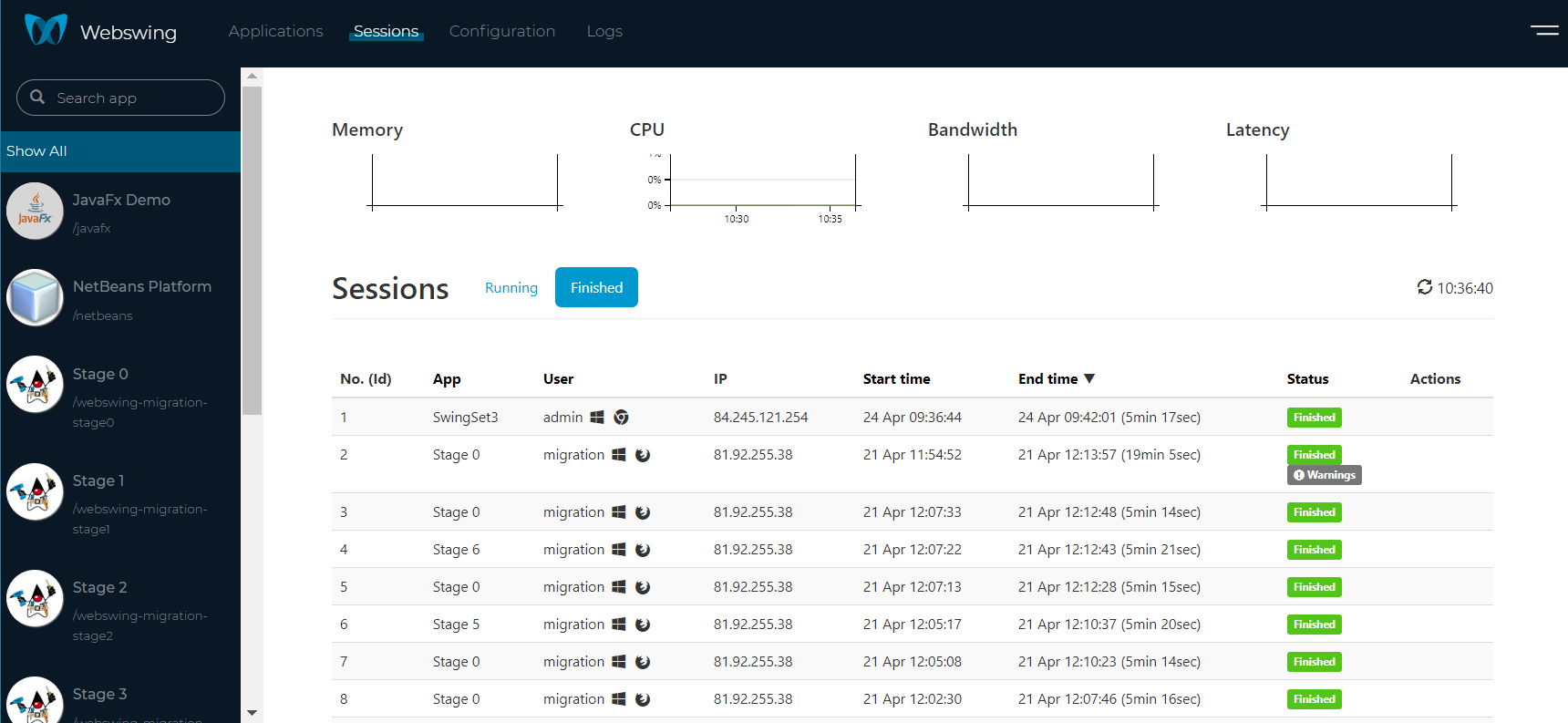

If you select Finished Sessions Tab then you can see history of all finished sessions with some useful details - username, IP address, session duration, ...

#Latency

The Latency Graph consists of the following partial graphs

1. Average HTTP ping latency - delay between sending a request and obtaining response (no business logic is performed on the server)
2. Average Server Rendering latency - delay between sending user event to Swing app and receiving rendering event from the awt framework
3. Average Client Rendering latency - delay between receiving rendering event and displaying it to user in JavaScript
4. Max E2E frame based latency - latency from the user event to server + server rendering + sending the change back to user + client rendering

#Customization

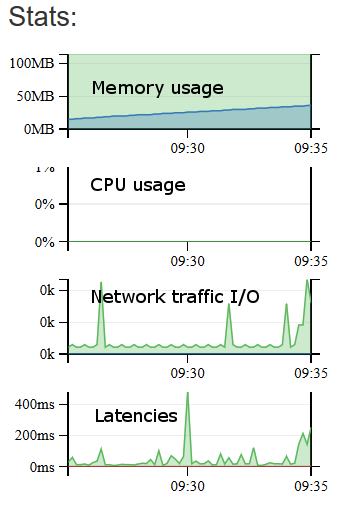

By default the graphs show CPU/Memory usage history of the last 10 minutes. This is due to memory requirements of the data. The defaults can be changed during startup of Webswing Server by providing specific System properties. Please note that low interval and high history size results in extended Memory and CPU usage.

webswing.stats.interval=10 (Granularity of the metrics, average of last 10 seconds is default)
webswing.stats.historySize=60 (Number of observations kept in memory, 60 by default)
webswing.stats.memUsageWarn=0.8 (Threshold to generate a memory usage warning, 80% default)
webswing.stats.latencyWarn=700 (Threshold to generate a network latency warning, 700ms default)
webswing.stats.pingWarn=500 (Threshold to generate a ping warning, 500ms default)

#Application Statistics

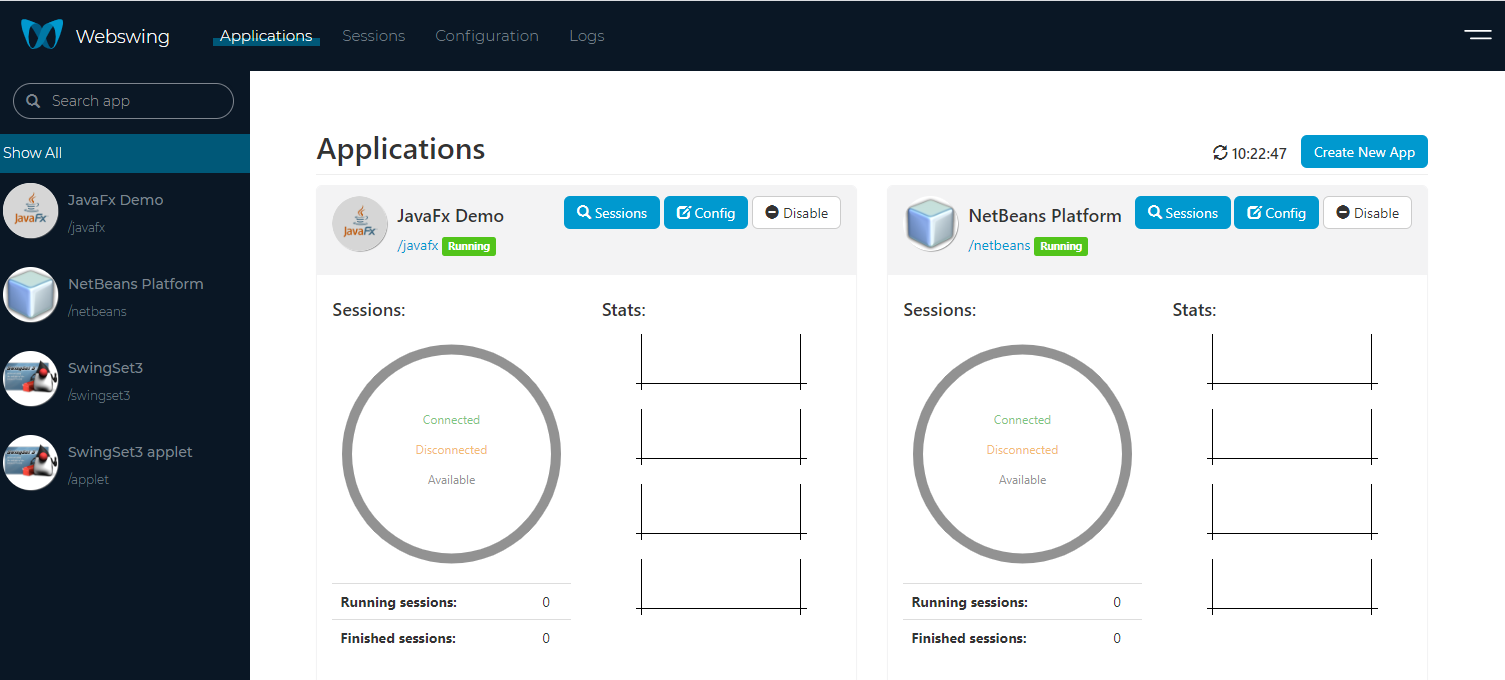

You can also see some basics statistics of each application from the main screen of Admin Console. This may help you to quickly analyze the current state of the applications to support the maintenance and monitoring.

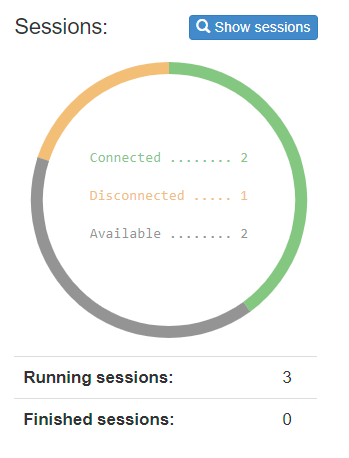

Overall application statistics - session aggregated.

The Show sessions button will navigate you to the Sessions page. It will be pre-filtered for the specific application.

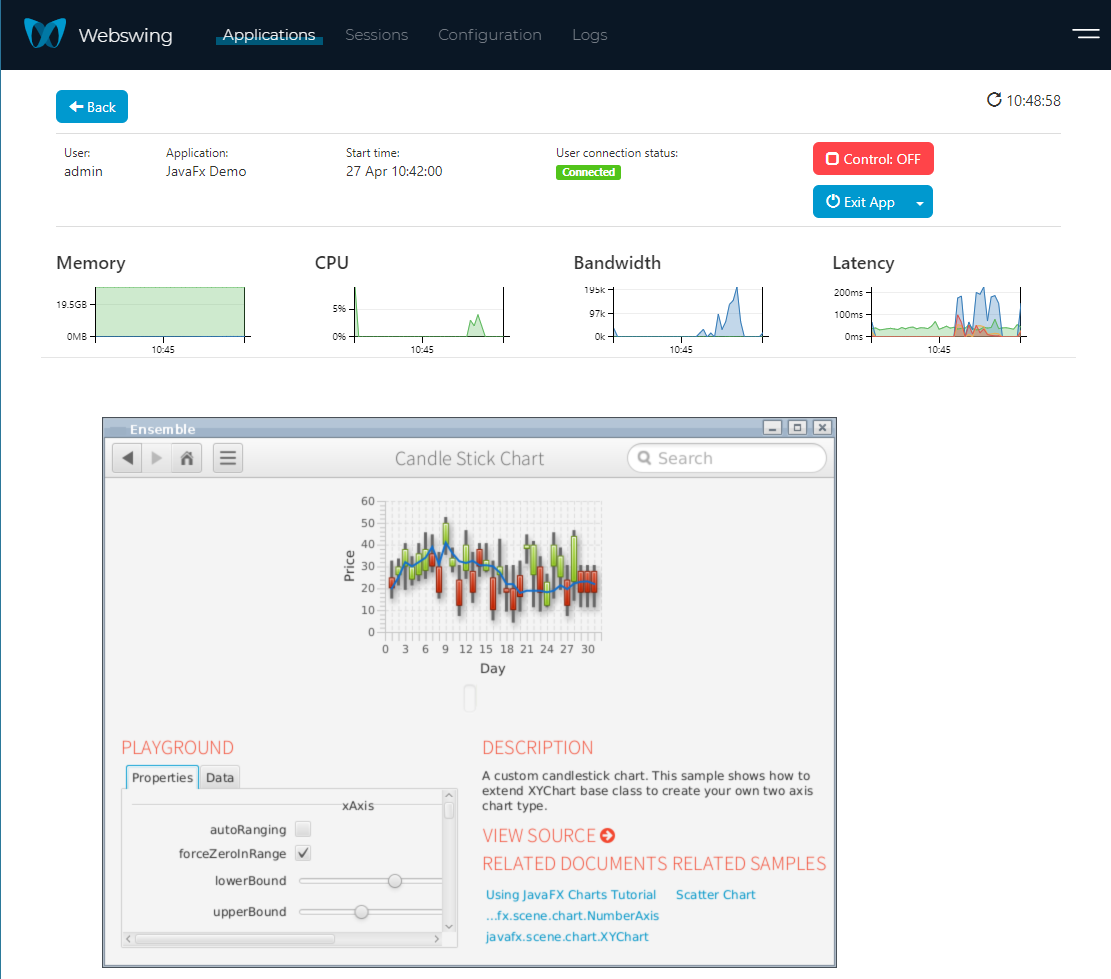

#Clone view

In the session detail page you can click the View button to see the copy of the user's session. The following information and features are available:

• Username of the session owner
• Statistics of current session
• Clone view of the session
• Full control of the application
• Possibility to record the session
• Shutting down the session

#Configuration overview

#General

#Security

#Logs

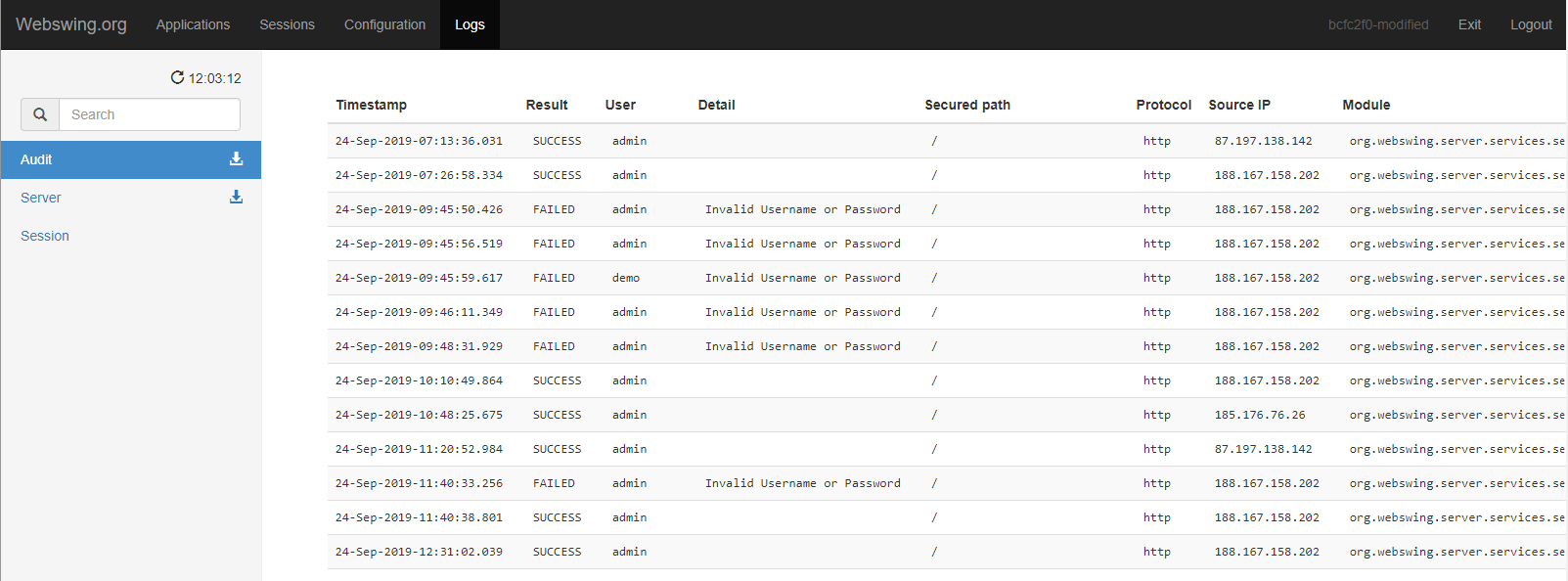

In the top navigation bar you can access Logs.
Within the logs page 3 logs are accessible:

• Audit - application access logs, pointed to System Property webswing.log.file.audit (by default audit.log)
• Server - application event logs, pointed to System Property webswing.log.file.server (by default webswing.log)
• Session - application event logs, as configured in the application (if log per session is enabled)

#Installation

To add admin console to your Webswing distribution follow these steps:

1. Download the Webswing Examples Distribution and copy apps/webapps/admin to ${webswing.rootDir}/apps/webapps/admin of your distribution
2. Add webFolder configuration to webswing.config file within the / element:

  "/" : {
    "path" : "/",
    "security" : {
      "module" : "EMBEDED",
      "config" : {
        "users" : [ {
          "username" : "admin",
          "password" : "pwd",
          "roles" : [ "admin" ]
        }, {
          "username" : "support",
          "password" : "pwd",
          "roles" : [ "support" ]
        }, {
          "username" : "user",
          "password" : "pwd"
        } ]
      },
      "classPath" : [ ]
    },
    "icon" : null,
    "webFolder" : "${webswing.rootDir}/apps/webapps",
    "langFolder" : "${webswing.configDir}/lang",
    "homeDir" : "${user.dir}",
    "swingConfig" : null,
    "allowedCorsOrigins" : [ "*" ]
  },

1. Start your Webswing server
2. You should be able to open http://localhost:8080/admin login with default values
