#Admin Console

For configuration, management and monitoring purposes Webswing provides a convenient web interface.

#Installation

Since Webswing 20.2, Admin Console is distributed as a standalone web server application in its own war file. To start Admin console simply run webswing&admin.bat on Windows to start both Webswing and Admin Console. On Linux, you start Admin Console separately using admin.sh which you can find in admin folder in the distribution package. You can also deploy the webswing-admin-server.war manually in a servlet container, however this has not been tested or documented yet.

To connect Webswing server with Admin Console server, you have to configure following:

• Admin Console URL in webswing.config file
  • under "/" path set field "adminConsoleUrl": "http://localhost:8090" or the current URL where your Admin Console server is running
• Connection secret in webswing-admin.properties
  • use the same webswing.connection.secret value as configured in webswing.properties file

The admin folder also contains two configuration files:

• jetty.properties - similar to Webswing server jetty configuration, configure host, port and SSL here
• webswing-admin.properties - several Admin Console server properties described in a table below

By default, Admin Console server runs on http://localhost:8090. You can either access it directly on this URL or click the Manage link in the application selector.

If you don't want to use Admin Console and want to remove the Manage link from selector, simply remove adminConsoleUrl field from your configuration in webswing.config.

#Overview

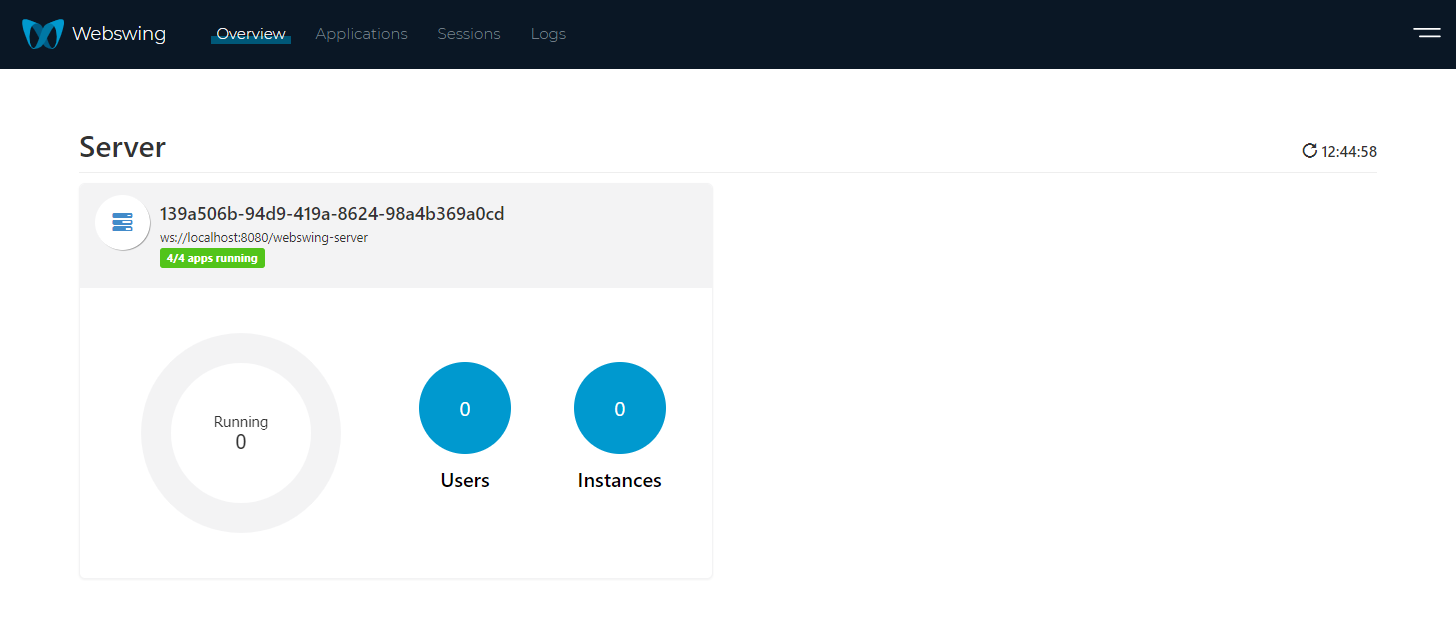

The Overview section shows you the overview of the server configuration. You can see how many apps are configured, how many instances are running and how many users are connected.

#Application configuration

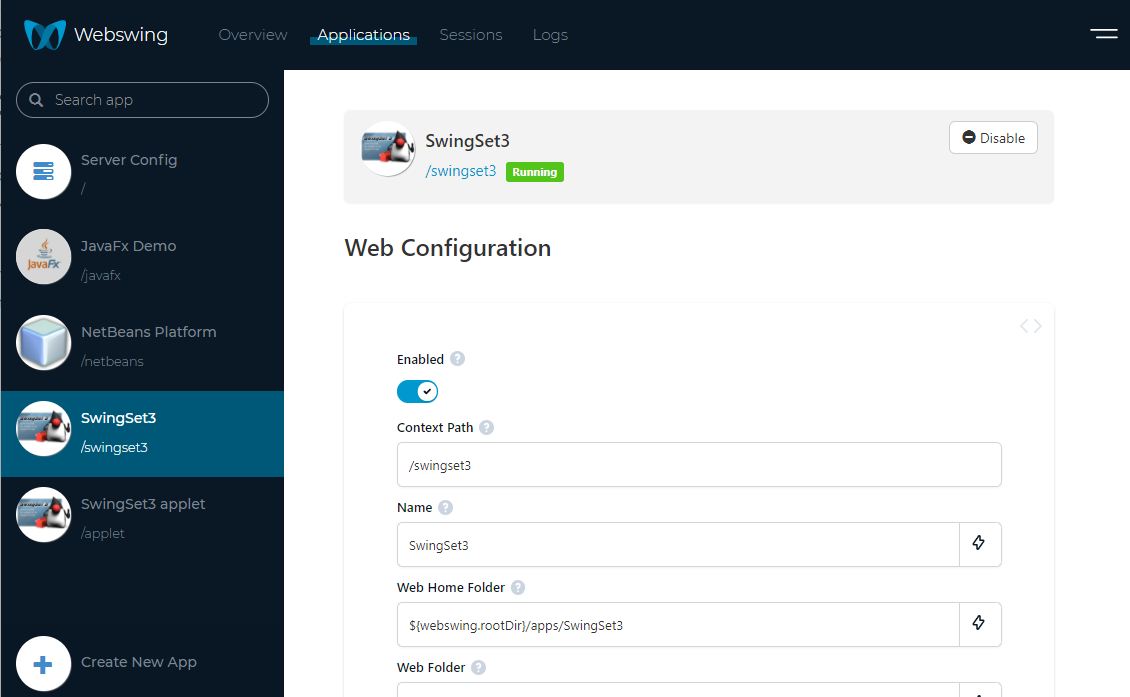

You can configure your applications in Applications section. In this section you can also add/remove an application or disable/enable it. For more details on how to configure your application please refer to this page.

#Statistics

In the top navigation bar you can access Sessions. Here you can see details about each session, shut down the session, or record the session. You can filter the sessions by selecting the application name on the left. In the top is aggregated data about CPU, RAM and Network consumption.

If you select Finished Sessions Tab then you can see history of all finished sessions with some useful details - username, IP address, session duration, ...

#Latency

The Latency Graph consists of the following partial graphs

1. Average HTTP ping latency - delay between sending a request and obtaining response (no business logic is performed on the server)
2. Average Server Rendering latency - delay between sending user event to Swing app and receiving rendering event from the awt framework
3. Average Client Rendering latency - delay between receiving rendering event and displaying it to user in JavaScript
4. Max E2E frame based latency - latency from the user event to server + server rendering + sending the change back to user + client rendering

#Customization

By default the graphs show CPU/Memory usage history of the last 10 minutes. This is due to memory requirements of the data. The defaults can be changed during startup of Webswing Server by providing specific System properties. Please note that low interval and high history size results in extended Memory and CPU usage.

webswing.stats.interval=10 (Granularity of the metrics, average of last 10 seconds is default)
webswing.stats.historySize=60 (Number of observations kept in memory, 60 by default)
webswing.stats.memUsageWarn=0.8 (Threshold to generate a memory usage warning, 80% default)
webswing.stats.latencyWarn=700 (Threshold to generate a network latency warning, 700ms default)
webswing.stats.pingWarn=500 (Threshold to generate a ping warning, 500ms default)

#Mirror view

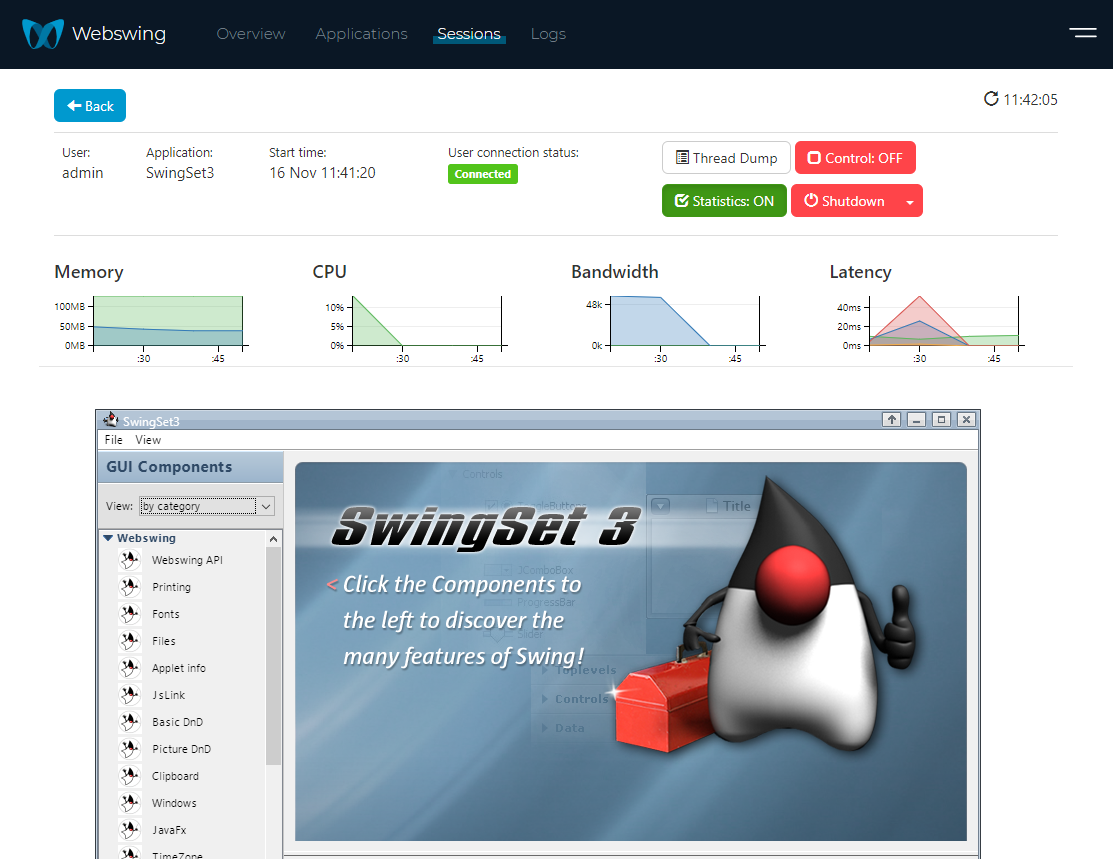

In the session detail page you can click the View button to see the copy of the user's session. The following information and features are available:

• Username of the session owner
• Statistics of current session
• Mirror view of the session
• Full control of the application
• Possibility to record the session
• Shutting down the session
• Turn on/off statistics for this session only
• Request a thread dump

#Mirror and recording consent

Using mirror and recording feature by administrator may bring privacy concerns for your end-users. In that case you can enable requesting user consent before mirror view or recording starts. Simply enable Require Recording Consent or Require Mirroring Consent in your application configuration.

If you'd like to change the text in consent dialogs, add the following system properties to vmArgs configuration of your application:

#Logs

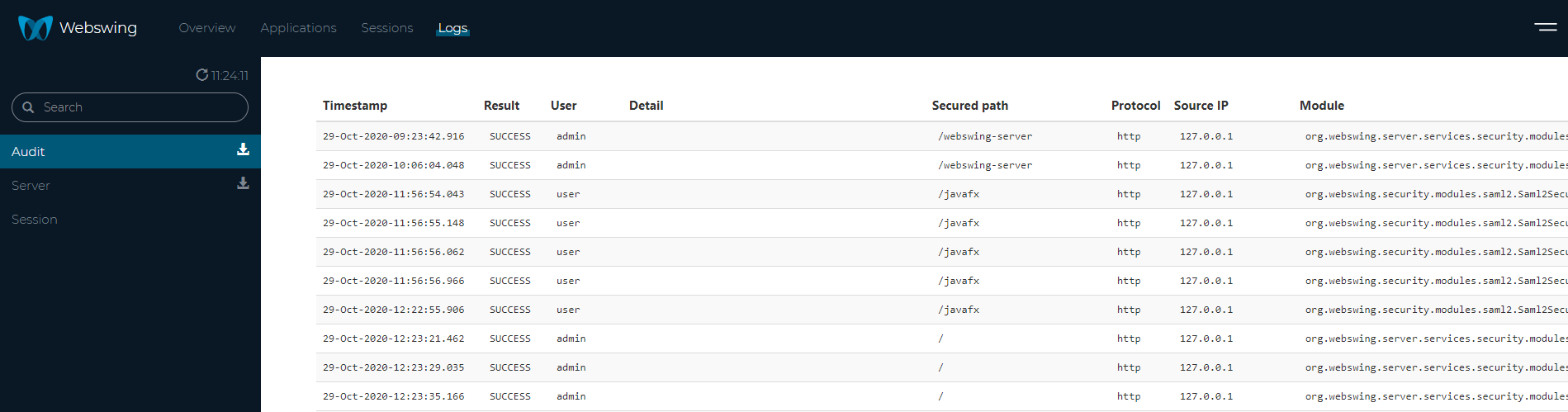

In the top navigation bar you can access Logs. Within the logs page 3 types of logs are accessible:

• Audit - application access logs (audit.log)
• Server - server and application event logs (webswing.log)
• Session - application event logs, as configured in the application (if log per session is enabled)
